Container Fleet
A safe journey starts with the correct container. Our vast fleet of owned containers, modern and diversified, is designed to accommodate and protect every type of cargo.
From standard dry units to specialized and refrigerated equipment, advanced technologies and ongoing maintenance ensure the integrity of the shipment wherever it is headed.
Special Equipment

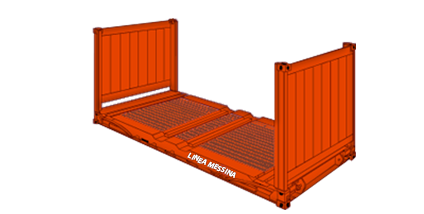

20' Flatrack
ISO Type: 20FR
ISO Code: 22G1
EXTERNAL (mm)
Length: 6058 – Width: 2438
PAYLOAD (kg)
Weight: 27250
TARE WEIGHT (kg)
2750

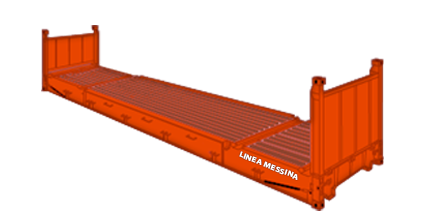

40' Flatrack
ISO Type: 40FR
ISO Code: 40P3
EXTERNAL (mm)
Length: 12192 – Width: 2438
PAYLOAD (kg)
Weight: 38920 – 40250
TARE WEIGHT (kg)
Min: 4750 – Max: 6080

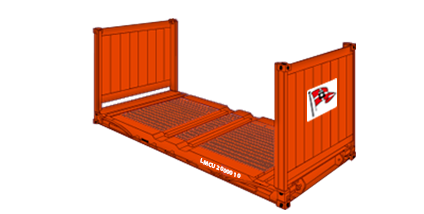

20' Flatrack High Cube
EXTERNAL (mm)
6058 x 2438 x 2896 mm (h collapsed 432 mm)
PAYLOAD (kg)
Weight: 47400
TARE WEIGHT (kg)
3000

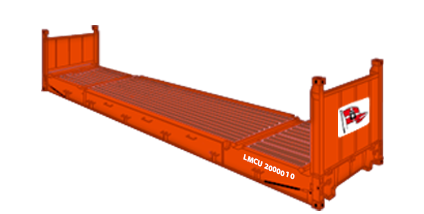

40' Flatrack High Cube
EXTERNAL (mm)
12192 x 2438 x 2896 mm (h collapsed 648 mm)
PAYLOAD (kg)
Weight: 47400
TARE WEIGHT (kg)
5100
Roll Trailers
| Tipe | External (mm) | Payload (kg) | Tare weight (kg) |
|---|---|---|---|
| 20′ | L 6170 – W 2500 – H 650 | Weight 40 tons | 4,1 tons |
| 40′ | L 12350 – W 2500 – H 750 | Weight 35/100 tons | 5/8 tons |
| 50′ | L 15240 – W 2500 – H 820 | Weight 80 tons | 10,1 tons |
| 60′ | L 18290 – W 2500 – H 650 | Weight 80 tons | 12,1 tons |
| 62′ | L 18900 – W 2500 – H 650 | Weight 100 tons | 12 tons |
Containers

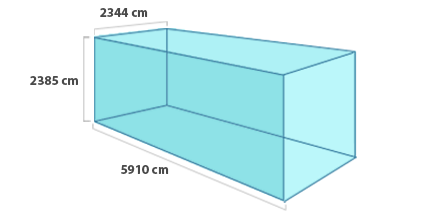

20' Box
ISO Type: 20BX
ISO Code: 22G1
EXTERNAL (mm)
Length: 6058 – Width: 2438 – Height: 2591
INTERNAL (mm)
Length: 5910 – Width: 2344 – Height: 2385
DOOR (mm)
Width: 2336 – Height: 2200/2285
PAYLOAD (kg)
Weight: 27580 – 28400
TARE WEIGHT (kg)
Min: 2080 – Max: 2900

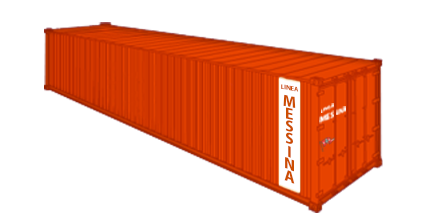

40' Box High Cube
ISO Type: 40HC
ISO Code: 45G1
EXTERNAL (mm)
Length: 12192 – Width: 2438 – Height: 2896

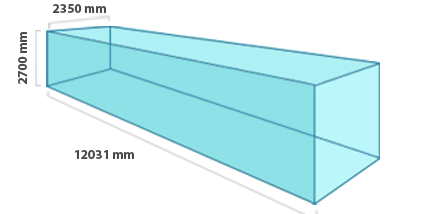

INTERNAL (mm)
Length: 12031 – Width: 2350 – Height: 2700
DOOR (mm)
Width: 2340 – Height: 2585
PAYLOAD (kg)
Weight: 28800
Weight: 26450 – 26500
Weight: 29730 – 29900
TARE WEIGHT (kg)
3700
Min: 3980 – Max: 4030
Min: 4100 – Max: 4270

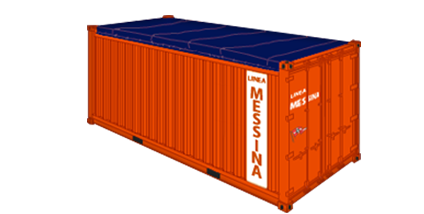

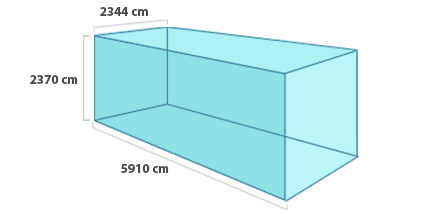

20' Box Opentop
ISO Type: 20OT
ISO Code: 22U1
EXTERNAL (mm)
Length: 6058 – Width: 2438 – Height: 2591
INTERNAL (mm)
Length: 12044 – Width: 2344 – Height: 2370
DOOR (mm)
Width: 2336 – Height: 2200/2285
PAYLOAD (kg)
Weight: 27840 – 27930
TARE WEIGHT (kg)
Min: 2550 – Max: 2640

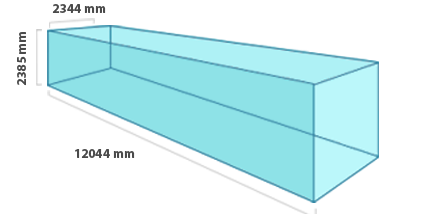

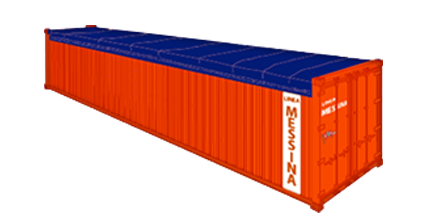

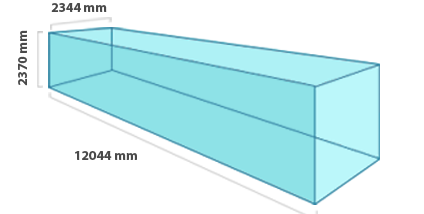

40' Box Opentop
ISO Type: 40OT
ISO Code: 42U1
EXTERNAL (mm)
Length: 12192 – Width: 2438 – Height: 2591
INTERNAL (mm)
Length: 12044 – Width: 2344 – Height: 2370
DOOR (mm)
Width: 2330 – Height: 2280
PAYLOAD (kg)
Weight: 26480 – 26730
TARE WEIGHT (kg)
Min: 3750 – Max: 4000
40' Box Opentop High Cube
ISO Type: 40OTHC
ISO Code: 45U1
EXTERNAL (mm)
Length: 12192 – Width: 2438 – Height: 2896
INTERNAL (mm)
Length: 12032 – Width: 2352 – Height: 2653
DOOR (mm)
Width: 2340 – Height: 2585
PAYLOAD (kg)
Weight: 28590
TARE WEIGHT (kg)
3910

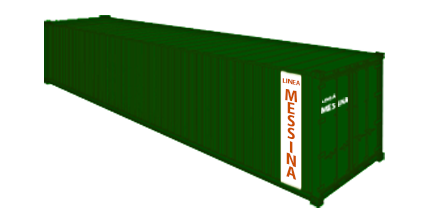

40' Box Pallet Wide
ISO Type: 40CP
ISO Code: 4CG1
EXTERNAL (mm)
Length: 12192 – Width: 2462 – Height: 2591
INTERNAL (mm)
Length: 12095 – Width: 2422 – Height: 2387
DOOR (mm)
Width: 2400 – Height: 2279
PAYLOAD (kg)
Weight: 29350 – 29960
TARE WEIGHT (kg)
Min: 4040 – Max: 4650
Refrigerated Containers
Our refrigerated fleet represents excellence in temperature-controlled transport. The 40′ High Cube containers are custom-built, new-generation units equipped with Daikin Zestia technology and Active CA (Active Controlled Atmosphere) systems. Thanks to DC converters, they guarantee absolute precision in maintaining temperature, drastically reducing energy consumption and CO2 emissions. Remotely controllable and equipped with intuitive displays for constant monitoring, they preserve the freshness of the most delicate heat-sensitive cargoes, offering a loading capacity of up to 23 Euro pallets or 20 industrial pallets. To guarantee maximum operational flexibility, in addition to the 40′ High Cube models, we also have 20′ Reefer units available, ideal for different volumes and logistical needs.

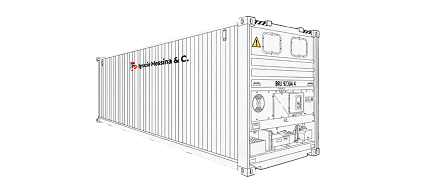

20' Reefer
ISO Code: 22R1
EXTERNAL (mm)
Length: 6058 – Width: 2438 – Height: 2591
INTERNAL (mm)
Length: 5420 – Width: 2260 – Height: 2290
DOOR (mm)
Width 2260 – Height 2190
PAYLOAD (kg)
Weight 20000 – Cubic 28,40
WEIGHT (kg)
Maximum Gross Weight: 30480
Tare Weight (inc. machinery): 3120
Payload Weight: 27360
20' Reefer High Cube
ISO Code: 25R1
EXTERNAL (mm)
Length: 6058 – Width: 2438 – Height: 2930
INTERNAL (mm)
Length: 5420 – Width: 2260 – Height: 2595
DOOR (mm)
Width 2260 – Height 2539
PAYLOAD (kg)
Weight 20000 – Cubic 27,150
WEIGHT (kg)
Maximum Gross Weight: 30480
Tare Weight (inc. machinery): 3120
Payload Weight: 27360

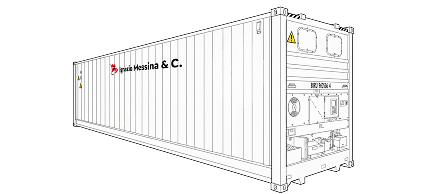

40' Reefer High Cube
ISO Code: 45R1
EXTERNAL (mm)
Length: 12192 – Width: 2438 – Height: 2896
INTERNAL (mm)
Length: 11588 – Width: 2284 – Height: 2545
DOOR (mm)
Width: 2290 – Height: 2596
PAYLOAD (kg)
Weight: 30480 – Cubic: 67.4
WEIGHT (kg)
Maximum Gross Weight: 35000
Tare Weight (ex. machinery): 4040
Tare Weight (inc. machinery): 4450
Payload Weight: 30550 kgs
HEAT LEAKAGE (kcal/deg.c.hr)
38.5
